Spec :
1in-2in CT
-
Intro :
Simple and quick coiled tubing connection method.
1in-2in CT
Simple and quick coiled tubing connection method.

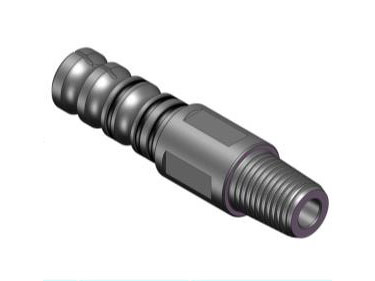

n Roll-On Connector
The Coiled Tubing Roll-On Connector is an inline connector and is utilized for standard coiled tubing applications.The connector is manufactured for a specific wall thickness and is easy and quick to install.
• Features and Benefits
Flush OD with coiled tubing.
Same OD as the Coiled Tubing.
* Custom requirements for special threads, sizes,materials and requirements are accepted
PN | CT Size（in） | OD(mm) | Connections |
114-100 | 1 | 25.4 | *pin |
114-125 | 1.25 | 31.75 | *pin |
114-150 | 1.5 | 38.1 | 1 AMMT pin |
114-175 | 1.75 | 44.5 | 1 AMMT pin |
114-200 | 2 | 50.8 | 1-1/2 AMMT pin |
