Spec :
1in-3/2in CT
-
Intro :
Provide a coiled tubing connection method.
1in-3/2in CT
Provide a coiled tubing connection method.

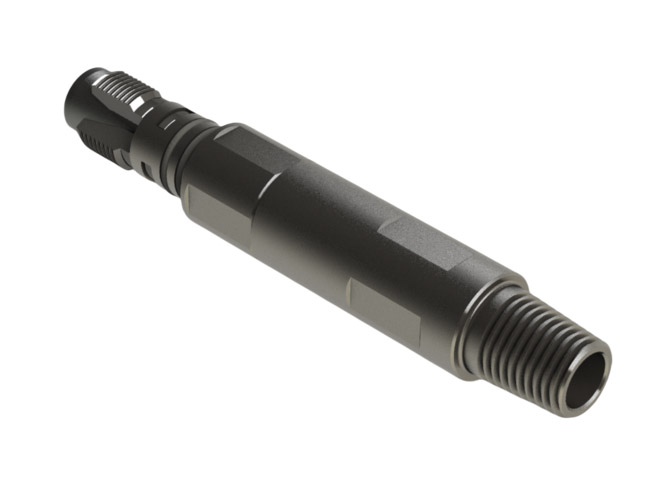

n Internal Slip Connector
Internal Slip Connector is connected to the coiled tubing by slips. It is the solution for torque and high tensile loads. It can be used for sand washing, gas lifting, and it is recommended when there is necking in the well.
•Features and Benefits
High tensile strength.
Internal pressure seal.
Same OD as the Coiled Tubing.
PN | CT Size（in） | OD（mm） | Connections |
107-150 | 1.5 | 38.1 | 1 AMMT pin |
107-175 | 1.75 | 44.5 | 1 AMMT pin |
107-200 | 2 | 50.8 | 1-1/2 AMMT pin |
107-2375 | 2.375 | 60.3 | 1-1/2 AMMT pin |
* Custom requirements for special threads, sizes,materials and requirements are accepted
