Spec :
1in-3/2in CT
-
Intro :
Provide a connection method for high-load operating conditions.
1in-3/2in CT
Provide a connection method for high-load operating conditions.

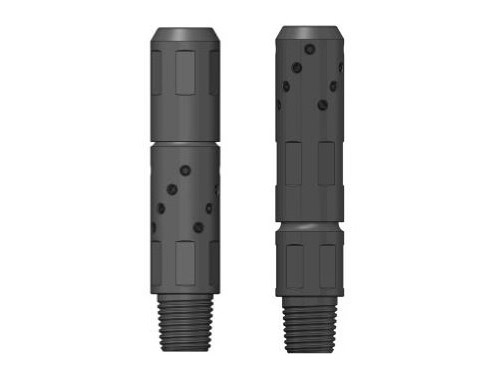

n Grapple Dimple Connector
The Grapple Dimple Connector is an external type coiled tubing connector with high tensile
strength and high torsion strength. It is connected tothe Coiled Tubing by grub screws and slips.
• Features and Benefits
High tensile strength and high torsion strength.
Set screws provide a secure hold on the coiled tubing.
PN | CT Size（in） | OD（mm） | Connections |
103-150 | 1.5 | 54 | 1-1/2 AMMT pin |
103-175 | 1.75 | 63.5 | 1-1/2 AMMT pin |
103-175-1 | 1.75 | 73 | 2-3/8 PAC pin |
103-200 | 2 | 73 | 2-3/8 PAC pin |
103-2375 | 2.375 | 79 | 2-3/8 PAC pin |
* Custom requirements for special threads, sizes,materials and requirements are accepted
