1in-3/2in CT
The connection method of safety and full equal diameter tool strings

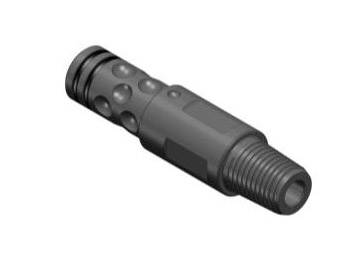

n Dimple-On Connector
Dimple-On Connector is an internal type coiled tubing connector withhigh tensile strength and
high torsion strength. It can be connected to the coiled tubing by making dimples into coiled
tubing through Dimpling Tool. It is ideal for drilling, cutting and fishing operations.
• Features and Benefits
Superior mechanical strength (comparable with that of the Coiled Tubing)
Connector make up time; typically 10 -15 minutes.
Hydraulic installation.
Torque thro connector.
PN | CT Size（in） | OD（mm） | Connections |
111-150 | 1.5 | 38.1 | 1 AMMT pin |
111-175 | 1.75 | 44.5 | 1 AMMT pin |
111-200 | 2 | 50.8 | 1-1/2 AMMT pin |
111-2375 | 2.375 | 60.3 | 1-1/2 AMMT pin |
* Custom requirements for special threads, sizes,materials and requirements are accepted
