1in-3/2in CT
Provide a Big ID hydraulic disconnect to avoid pressure loss at the location of the Disconnect

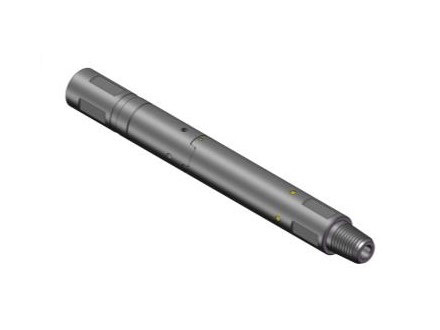

n Big ID Hydraulic Disconnect
Big ID hydraulic disconnect provides a larger borefor coiled tubing stimulation and wellbore clean up operations. The lower tool can be released by throwing the ball.
Provide a larger inner diameter for coiled tubing production and wellbore cleaning operations. The release of the lower tool can be achieved by dropping ball.
• Features and Benefits
Claw sleeve structure ,Big bore design.
Positive torque drive teeth provides high torsion strength.
PN | OD(mm) | ID（mm） | Connections |
203-430 | 43 | 15 | 1 AMMT B*P |
203-450 | 45 | 15 | 1 AMMT B*P |
203-508 | 50.8 | 15 | 1-1/2 AMMT B*P |
203-540 | 54 | 20 | 1-1/2 AMMT B*P |
203-635 | 63.5 | 25 | 1-1/2 AMMT B*P |
203-730 | 73 | 35 | 2-3/8 PAC B*P |
203-790 | 79 | 38 | 2-3/8 PAC B*P |
* Custom requirements for special threads, sizes,materials and requirements are accepted
