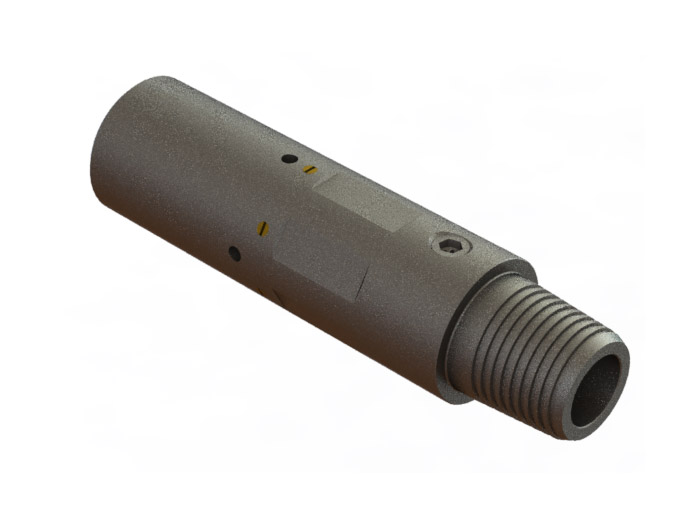

Dual Activated Circulation Valve

Spec :
1in-3/2in CT
Intro :
A dual activated circulation valve is provided, which can be activated either by ball dropping or by maintaining pressure within the pipe.

Inquiry now

Product parameters

n Dual Activated Circulation Valve

Dual activated circulation valve is one of the essential tools for coiled tubing operations, it can provide circulation access when the tool string is blocked.

• Features and Benefits

Two activation methods: dropping ball and rupture.

Precise pressure control is possible.

A larger circulation channel can be created after dropping ball.

PN	OD（in）	ID（in）	Connections
306-380	1.5	0.43	1 AMMT B*P
306-430	1.69	0.51	1 AMMT B*P
306-450	1.75	0.51	1 AMMT B*P
306-508	2	0.51	1-1/2 AMMT B*P
306-540	2.125	0.67	1-1/2 AMMT B*P
306-603	2.375	0.67	1-1/2 AMMT B*P
306-635	2.5	0.67	1-1/2 AMMT B*P
306-730	2.875	0.86	2-3/8 PAC B*P
306-790	3.11	0.86	2-3/8 PAC B*P

* Custom requirements for special threads, sizes,materials and requirements are accepted
