Excellent Performance Truck-Mounted Workover Rig XJ900(XJ350) XJ700(XJ250) Perfect Substitution for Halliburton Baker Hughes

Spec :
Intro :

Inquiry now

Product parameters

Products Description

Product Outline1.XJ900(XJ350)is a kind of Truck-mounted workover equipment, Maximum hook load900KN, mast height 29m, workover depth 4000m (73mmEUE); The driling depth is 1000(114mm DP). 2.Two parts:Special- purpose chassis, drive type 8 x4; special working equipment for workover. 3.The mast is structural mast, the hydraulic cylinder carries out lifting. 4.Slant degree: 3.5°the mast upper body bearing unit equipped with cylinder bearing organ that is the turning blocktype,which structure is simple, safe and reliable. 5.Draw-works: Single drum structure, maximum capacity 180 KN, band or disc brake, withreliable performance, uniform drilling speed.

Liquid and Gas Control System:

1.Hydraulic oil pump use resistance polluted gear oil pump,reliable performance, Reversingvalve adoped pneumatic controland manual duplexing Structure,simple operating and pipelinelayout.
2.Used for workover with:≤7000m depth, oil, water, oil, drilling for:water, gas.

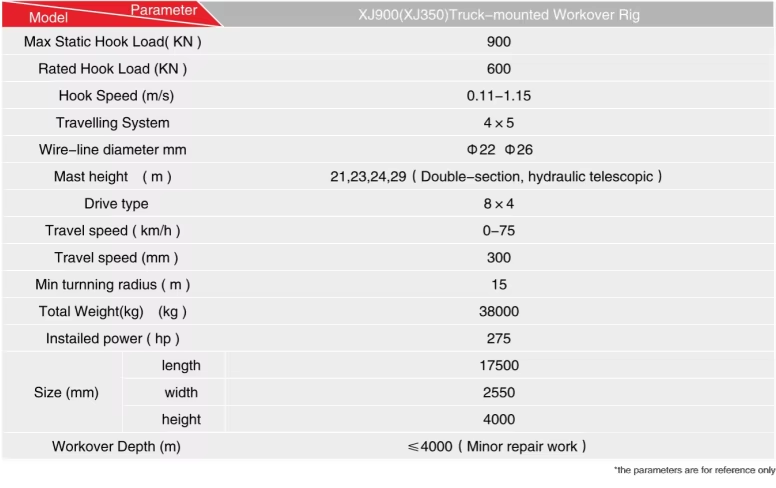

Product Paramenters
