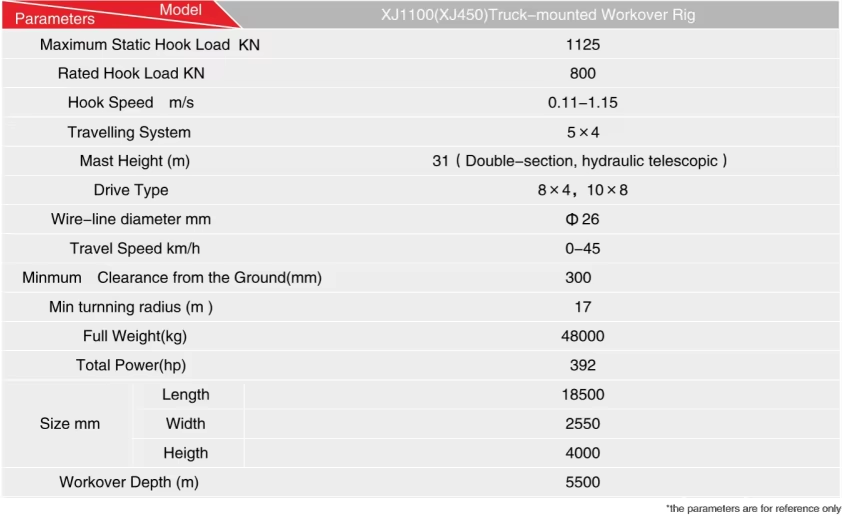

Product Outline1.XJ1100(XJ450)is a kind of Truck-mounted workover equipment, Maximum hook load1125KN, mast height 31m, workover depth 5500m(73mmEUE),driling depth is 1500m(114mm DP).
2.Two parts: Special- purpose chassis, drive type 8x4 or10x8 ; special working equipment
for workover.
3.The mast is structural mast, the hydraulic cylinder carries out lifting. Slant degree: 3.5°the mast upper body bearing unit equipped with cylinder bearing organ that is the turning blocktype, which structure is simple, safe and reliable.
4.Drawworks: Single drum structure, maximum capacity 210 KN, band or disc brake, thestructure are compact, the efficiency is high, the service life is long.
5.Liquid and gas control system: hydraulic pumps, reliable performance, the use of gascontrol valve with manual dual control structure, simple operation and effort, pipeline layoutand concise.Main Use:Used for workover with:s5500m depth, oil, water, oil, drilling for:water, gas.
