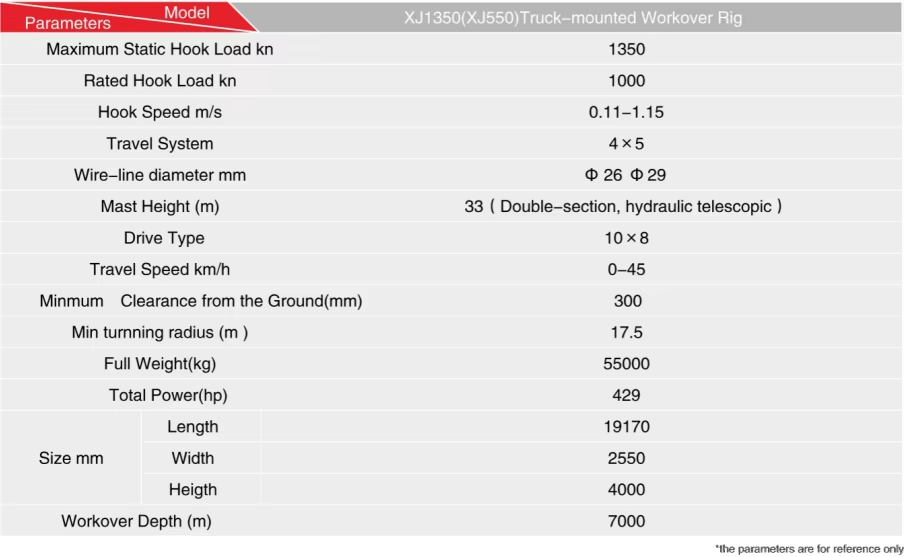

Product Outline1.XJ1350(XJ550)is a kind of Truck-mounted workover equipment, Maximum hook load1350KN, mast height 33m, workover depth 7000m , nominal workover depth 5500m, drilling depth is 2000m(114mm DP).Two parts: Special- purpose chassis, drive type 10*8; special working equipment for workover.
2.The mast is structural mast, the hydraulic cylinder carries out lifting.
3.Slant degree: 3.5°the mast upper body bearing unit equipped with cylinder bearing organ that is the turning blocktype,which structure is simple, safe and reliable.
4.Drawworks: Single drum structure, maximum capacity 210 KN, band or disc brake, thestructure are compact, the efficiency is high, the service life is long.
5.Liquid and gas control system: hydraulic pumps, reliable performance, the use of gascontrol valve with manual dual control structure, simple operation and effort, pipeline layoutand concise.Main Use:Used for workover with:<7000m depth, oil, water, oil, drilling for:water, gas.
