Truck mounted workover rig is to install the power system, drawwor, mast, traveling system, transmission system and other components on the self-propelled chassis. The whole rig has the characteristics of compact structure, high integration, small floor area, fast transportation and high relocation efficiency.
Product Features:

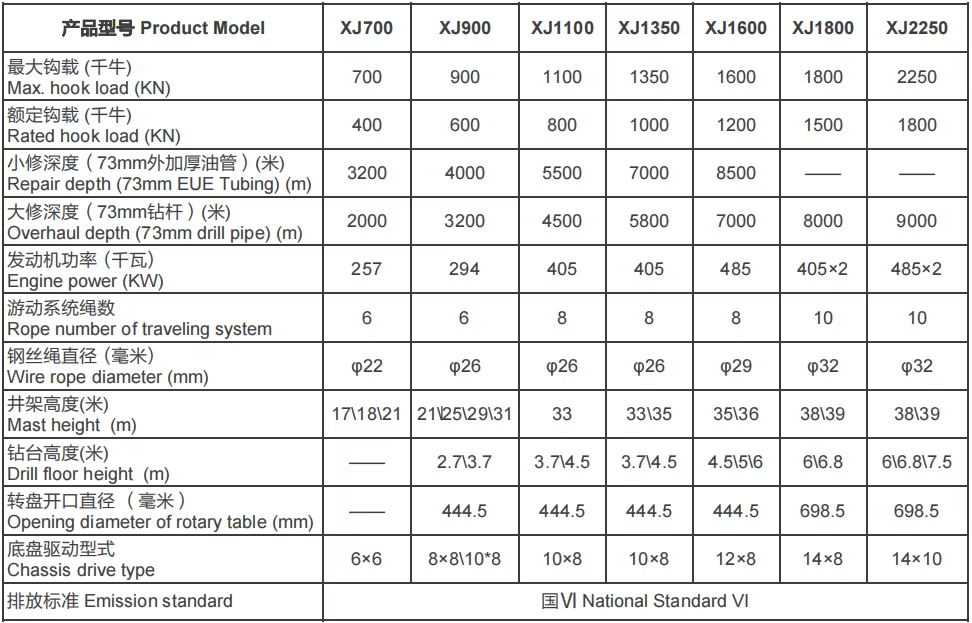

1.The product series is complete, and the maximum hook load is 700kn-2250kn.
2.The engine is an internationally famous brand, which can meet the emission level of national VI at most.
3.Hydraulic and mechanical transmission type is adopted, with stable transmission, low impact and high comprehensive
efficiency.
4.The chassis of self-made oilfield special vehicle is adopted, which has excellent off-road performance, mobility and
safety performance, and meets the complex road conditions of the oilfield.
5.Drawworks main brake adopts the band brake or hydraulic disc brake as optional. The auxiliary brake can be
pneumatic push disc type, pneumatic caliper disc type and water brake. The sand drum is optional. The design and
manufacture of drawwork parts comply with API 7K specification.
6.The mast is hydraulically raised and telescoped, and its design and manufacture comply with API 4f specification.
7.The drill floor size and height can be customized according to user requirements.
8.The electric, air and hydraulic circuit systems are controlled centrally, and the main components are imported
well-known brand components.
