Spec :
-
Intro :

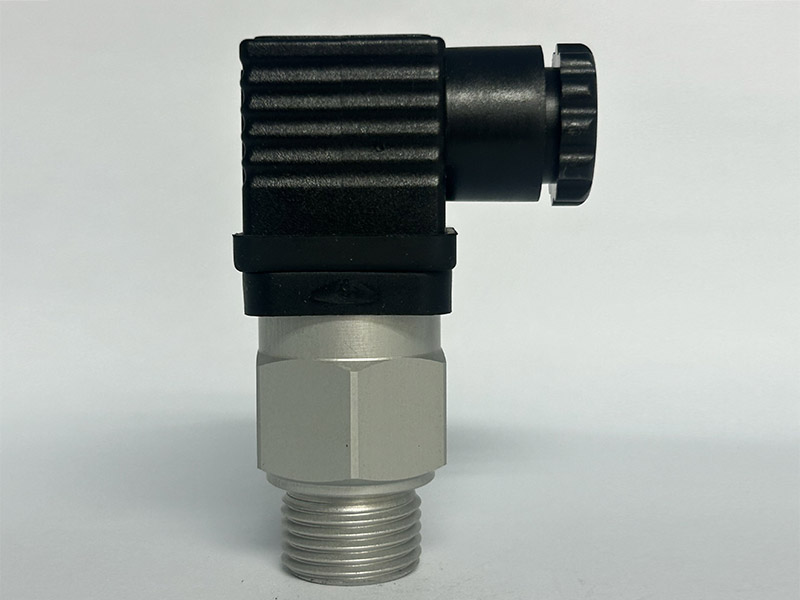

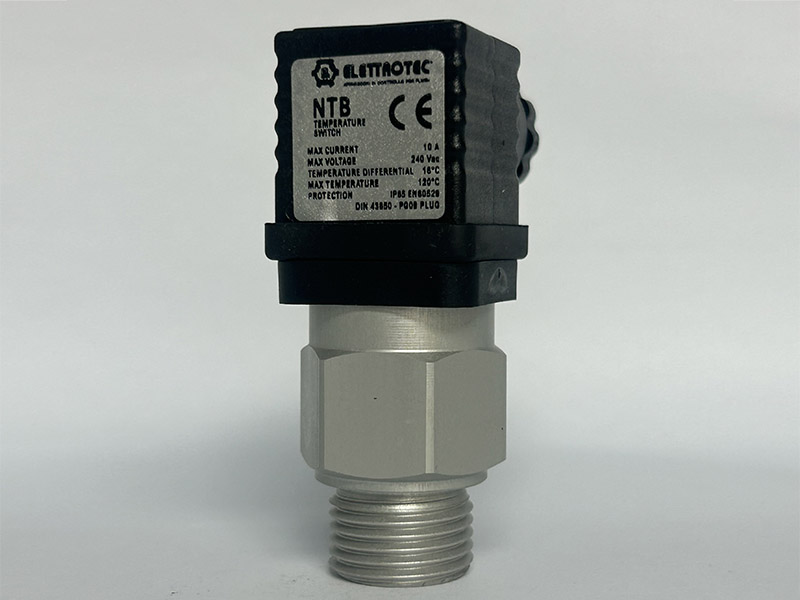

Bimetallic temperature switches with fixed set-point.

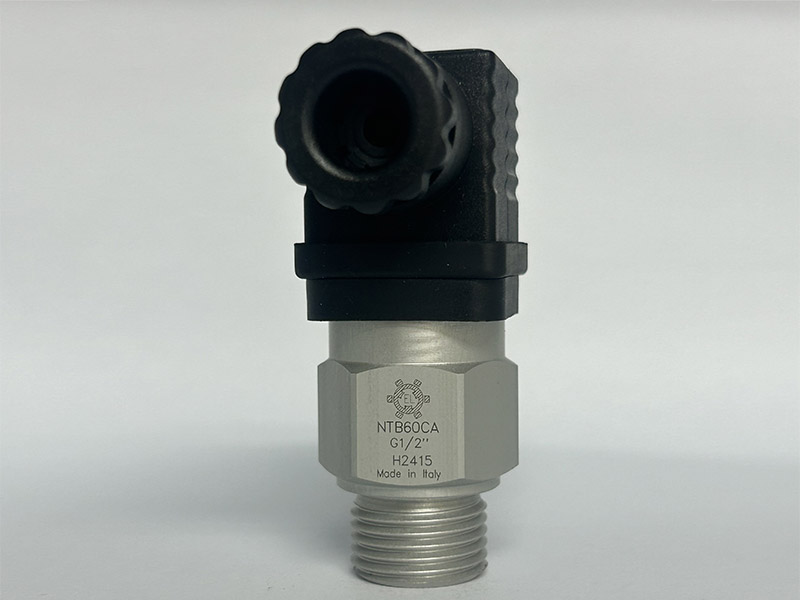

Body in anodized aluminium,G3/8”-G1/2”-M22x1.5 standard threads, DlN 43650 PG09.

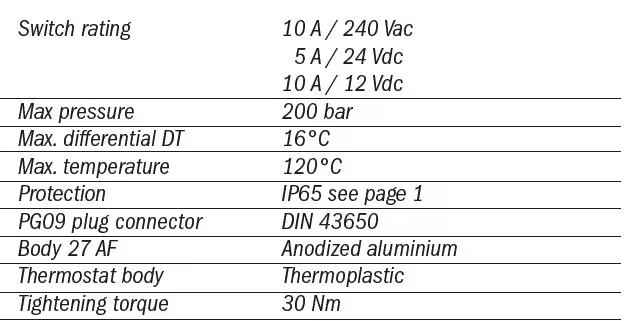

IP65 protection. N/0 or N/C contacts rated at 10A/240 Vac.
Actuation point from +25℃ to +105℃.
Switching differential(hysteresis) max. 16°C. Swivel DlN plug.
Model available with optional magnet.
