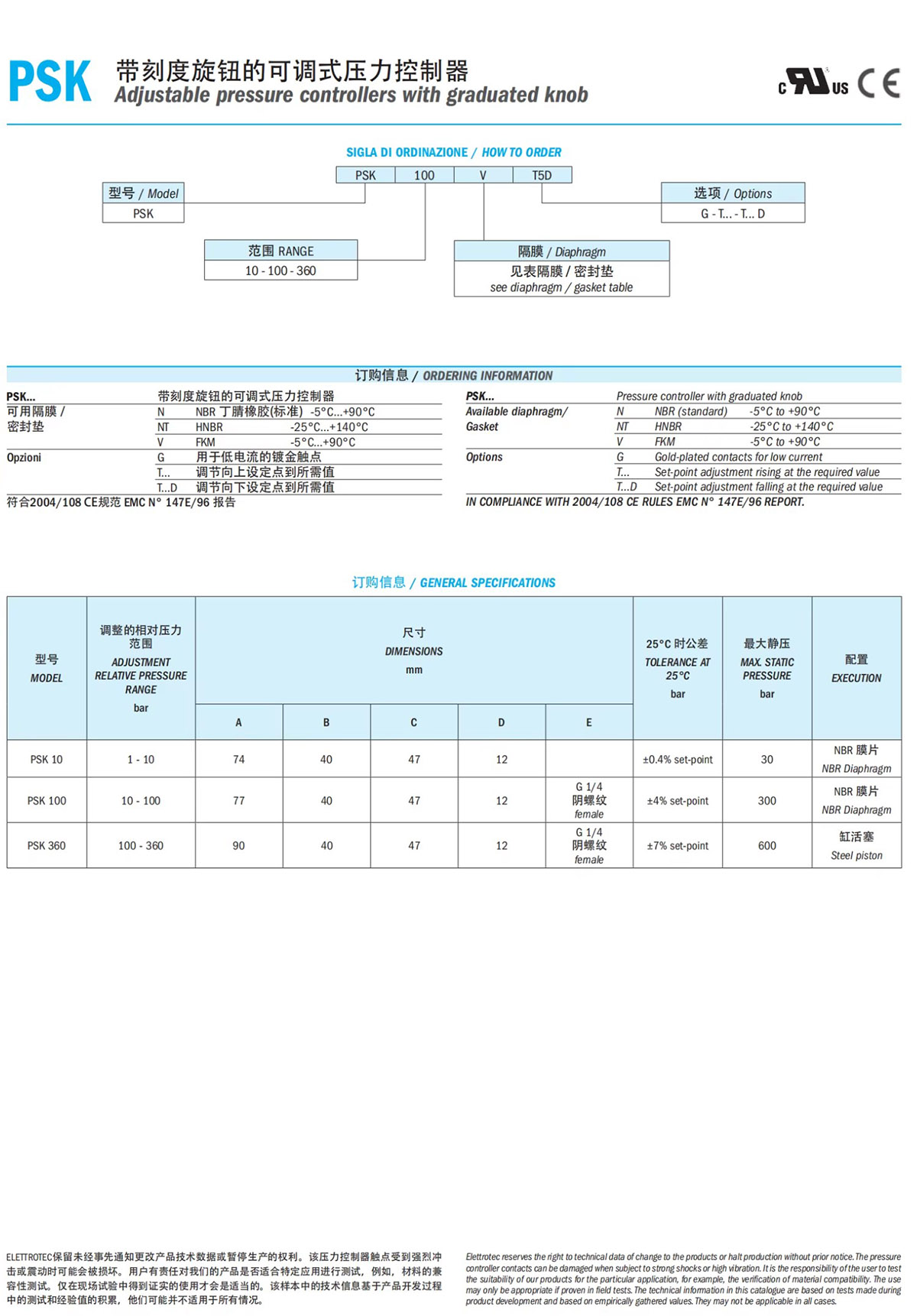

Spec :
-
Intro :

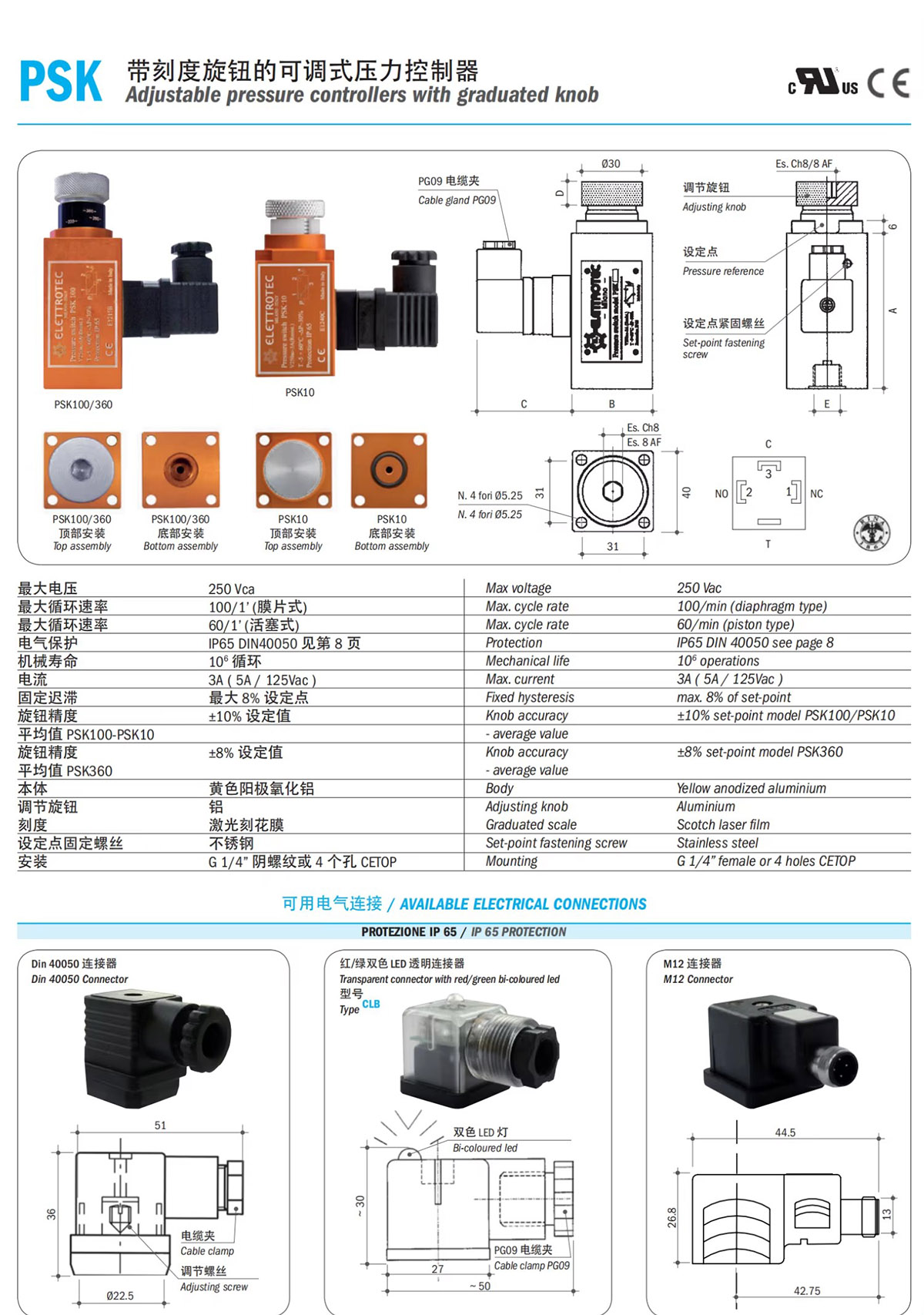

Pressure switches diaphragm or piston execution
designed with graduated knob for easy adjustment,
Body in yellow, black or natura! Anodized aluminium,standard NBR membrane and
steel piston,aluminium knob and set-point security dowel in stainless steel

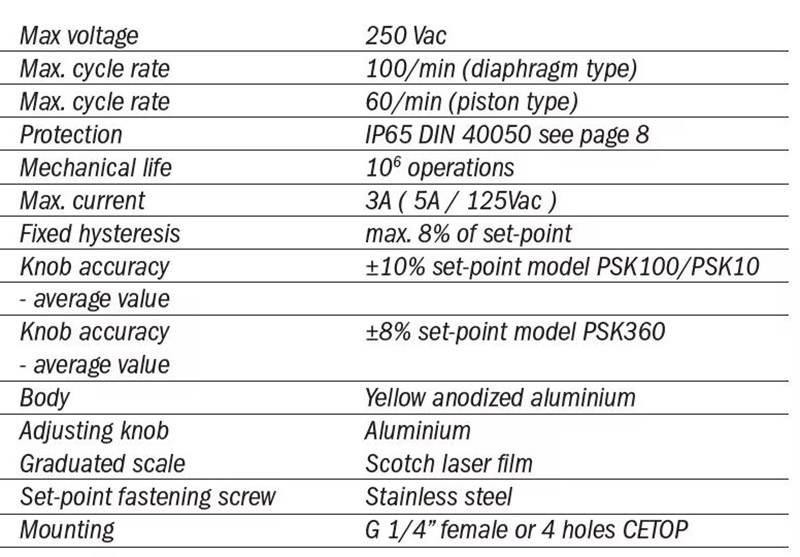

Adjustment ranges 1 to 360 bar; fixed hysteresis. SPDT
contacts rated at 3A/250 Vac.
Designed with 1/4"BSP thread connection but also suitable for manifold assembly.
Temperature range.-5'℃ to + 60°C.IP65 protection.
