Spec :
-
Intro :

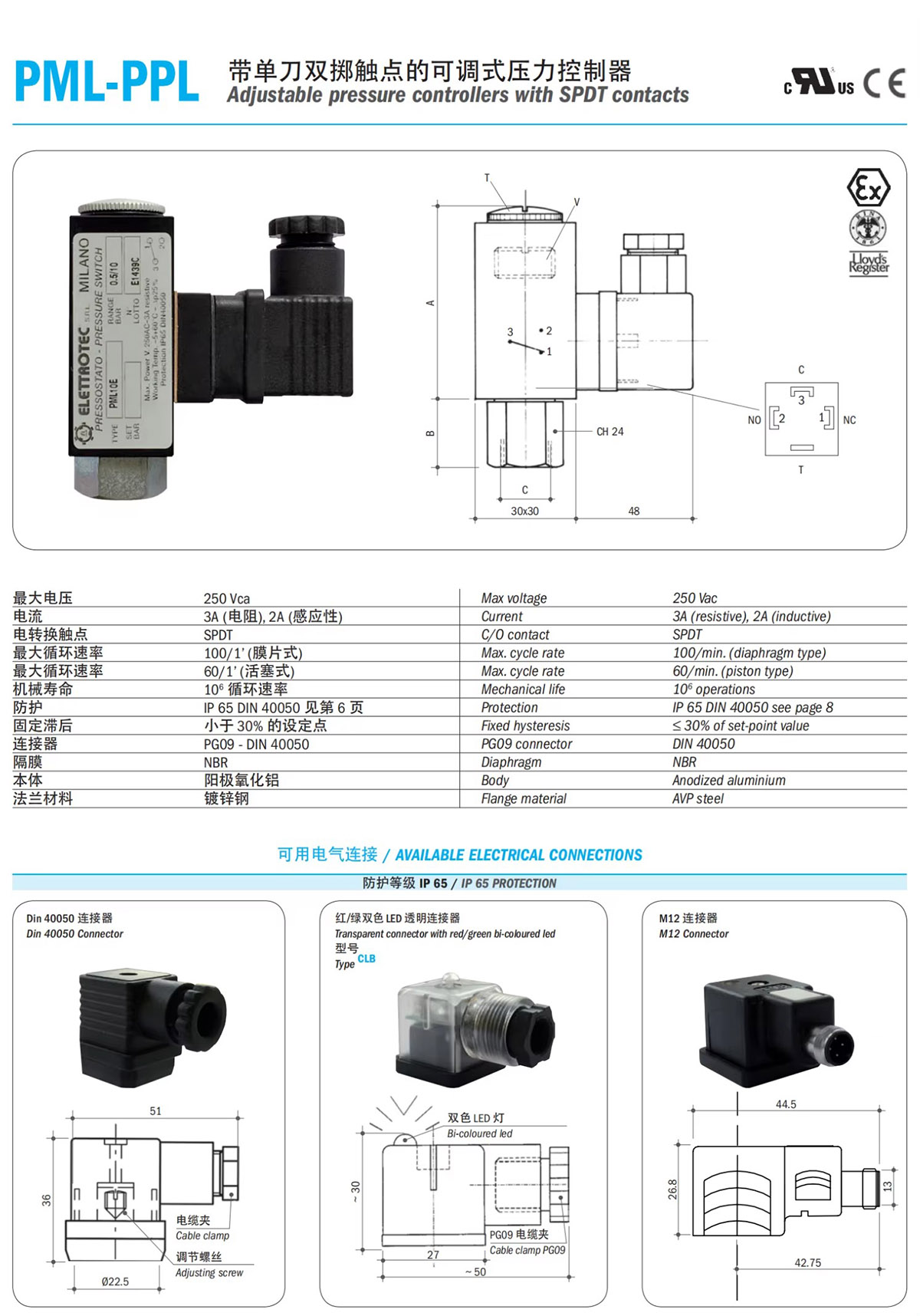

Adjustable pressure switches diaphragm or piston
execution with DIN 43650 PG09 connector, C/0 contacts (SPDT) rated at 3A/250 Vac.

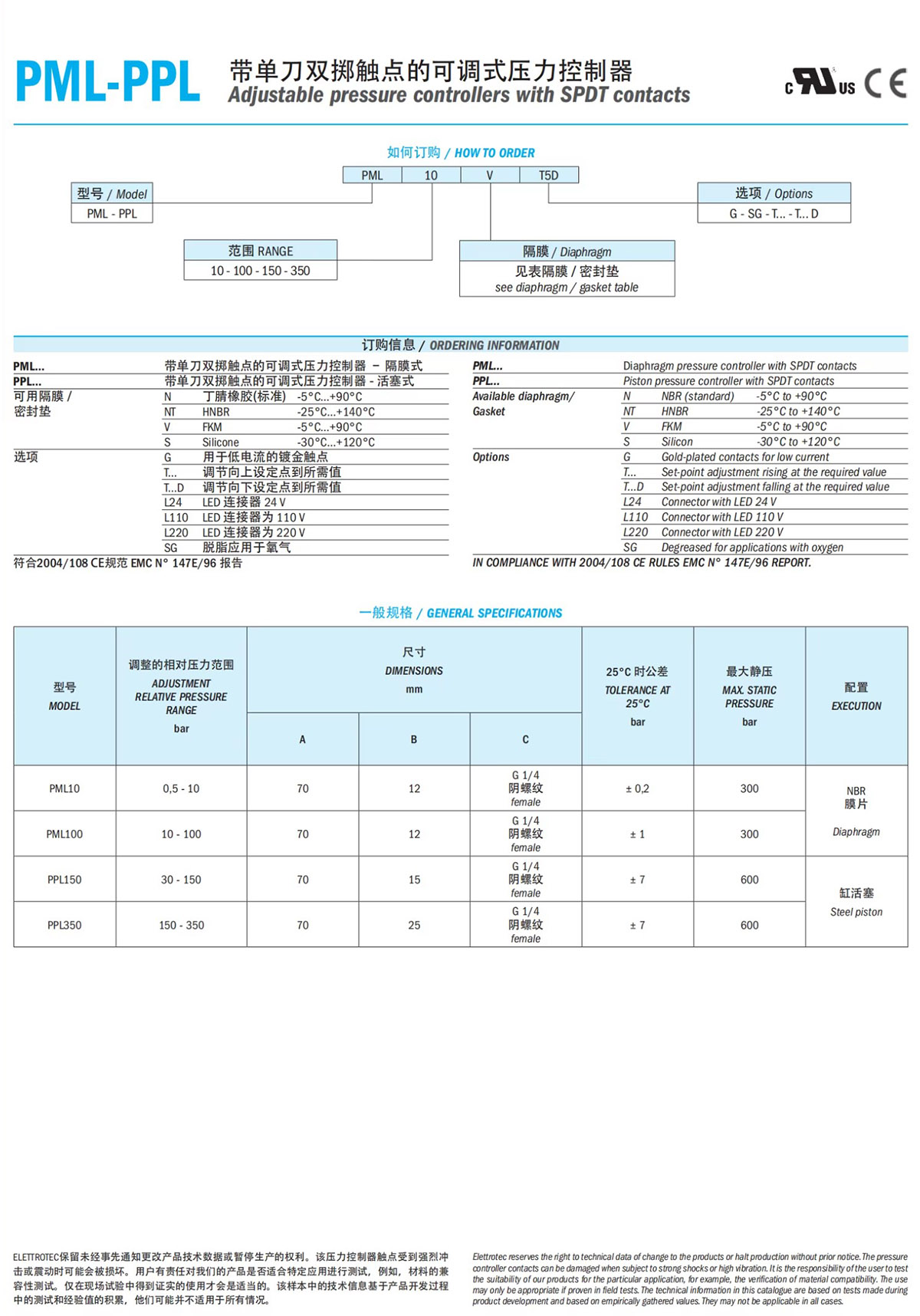

Adjustment ranges 0.5 to 350 bar and hysteresis ≤30% of set-point value. Anodized aluminium body,
G1/4 female connection, membranein NBR, HNBR, FKM, EPDM.
Temperature range -5°C to+60°C.
Models available with ATEX (Exia) and RINA product approvals.
