Spec :
-
Intro :

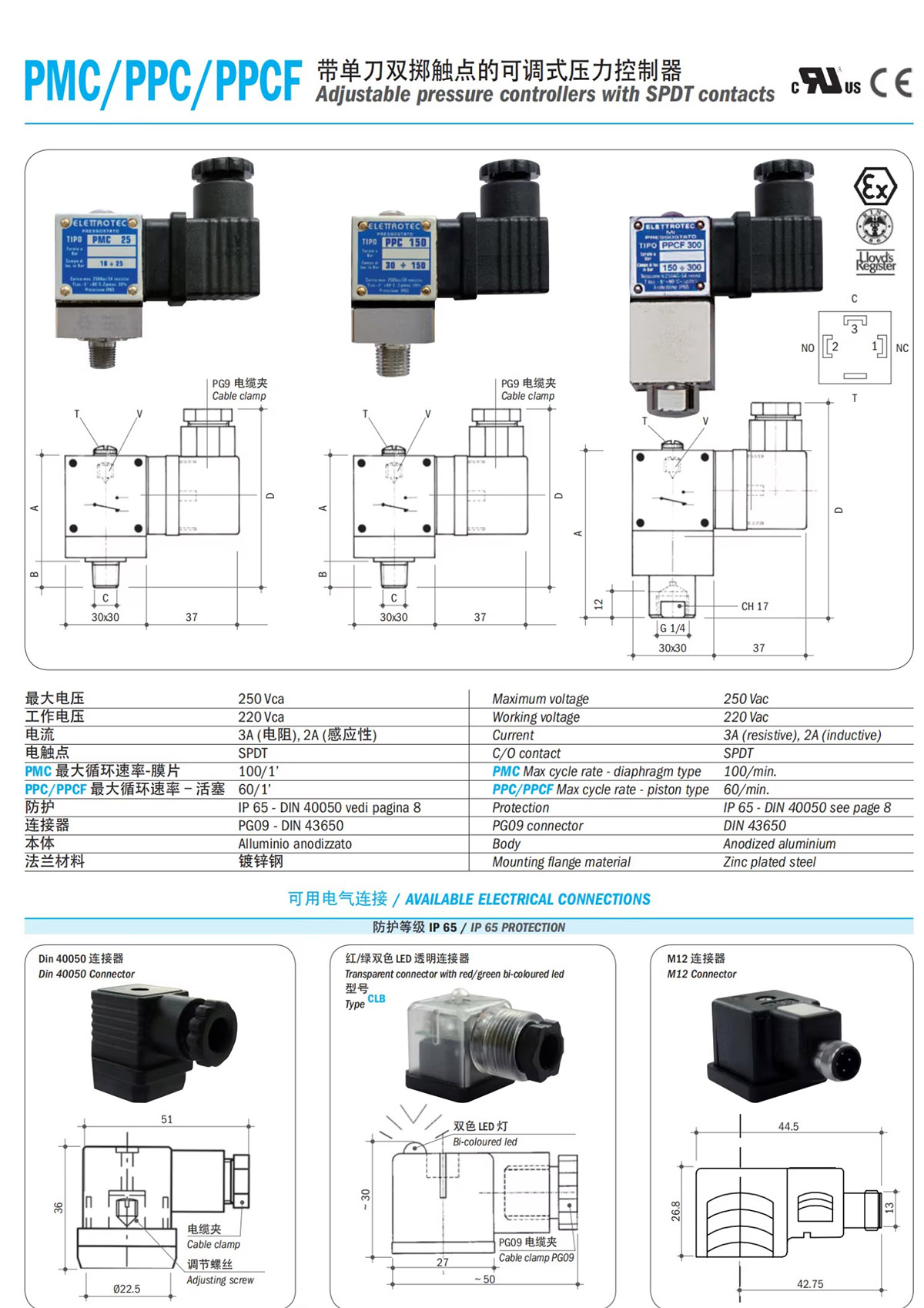

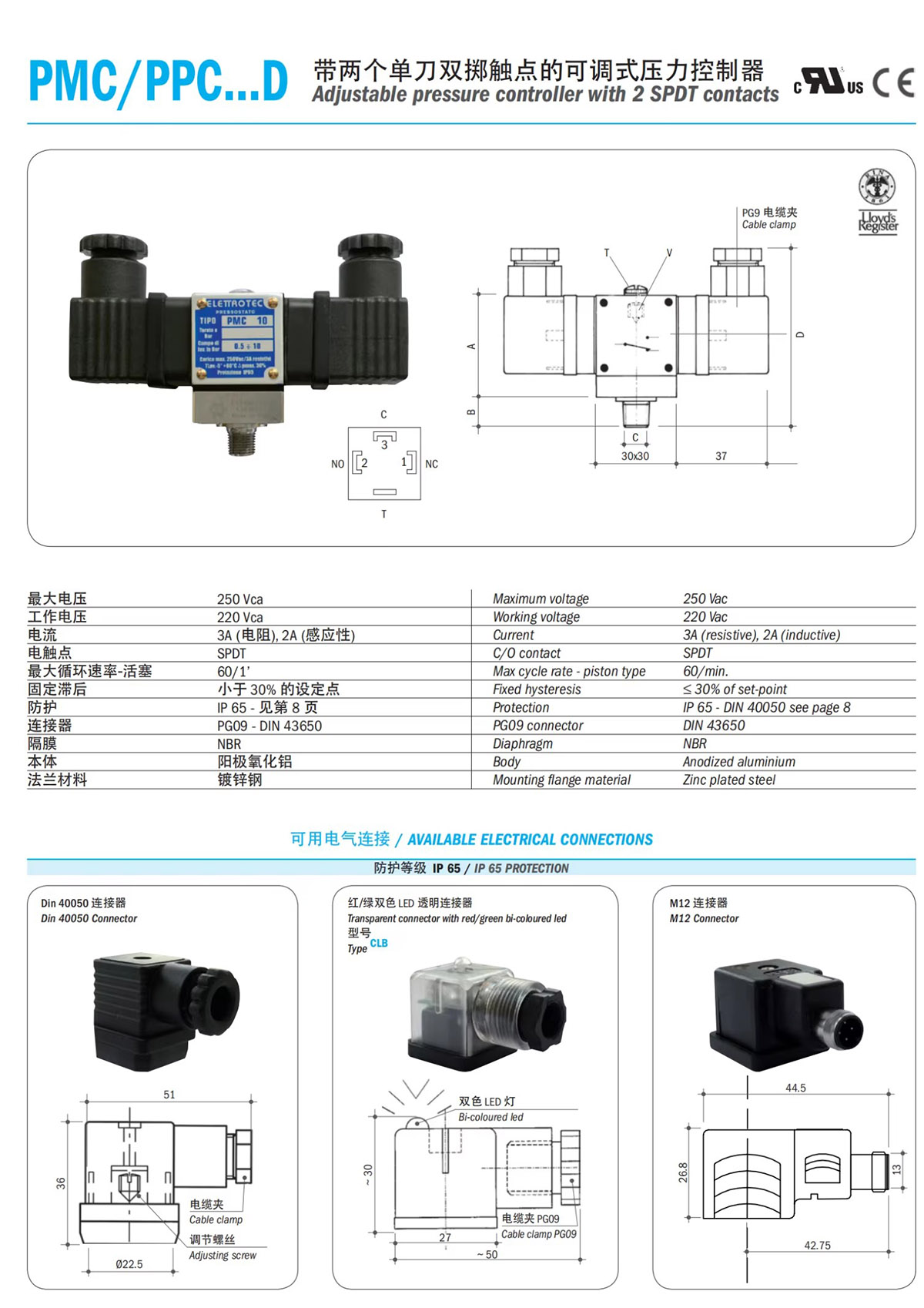

Adjustable pressure switches diaphragm or piston

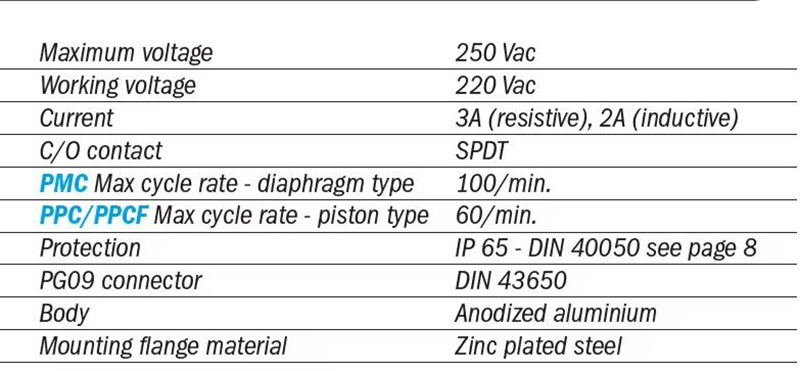

execution designed with DIN43650 PG09 connector, C/0 contacts (SPDT) rated at 3A/250Vac.

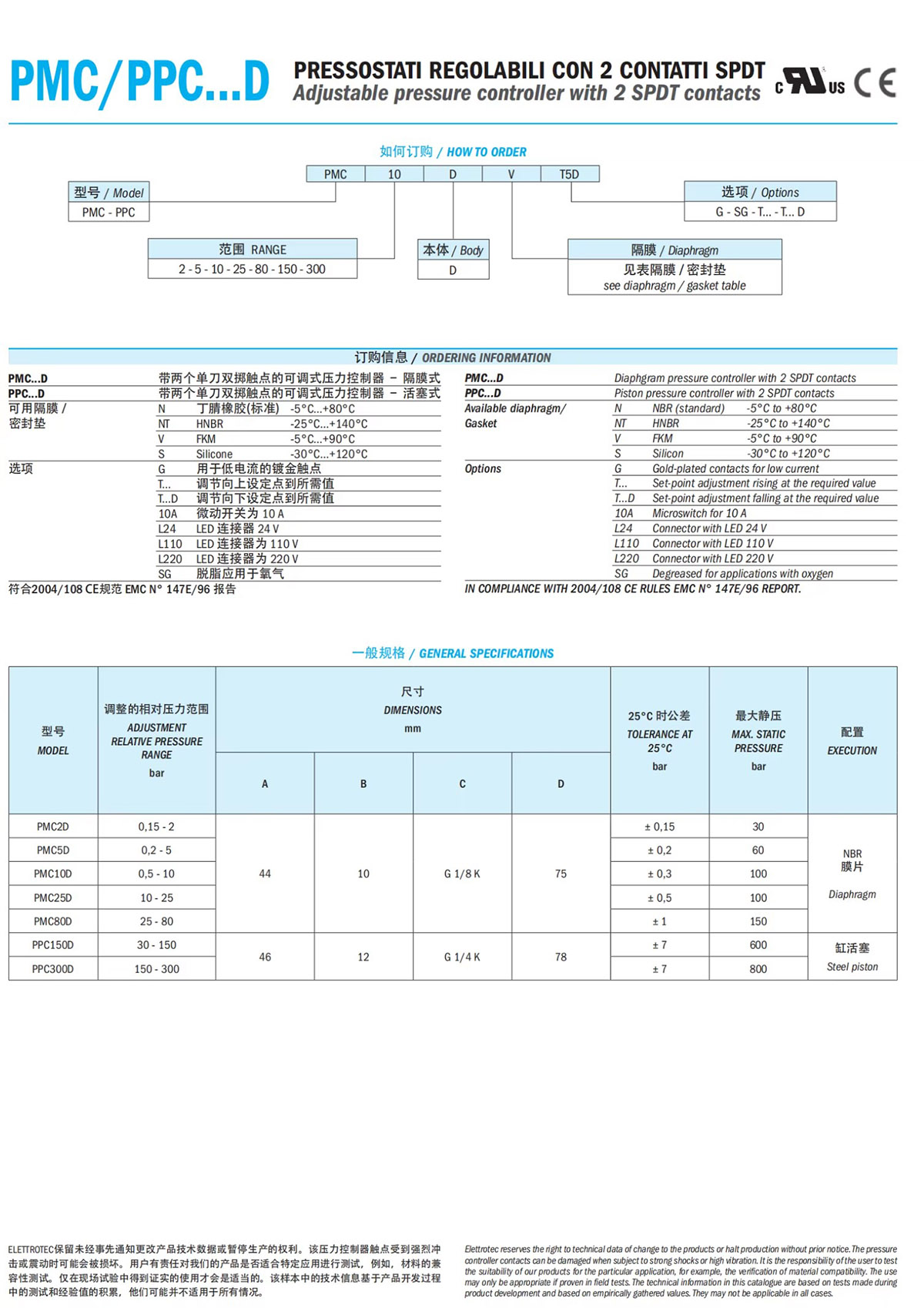

Adjustment ranges 0.15 to 300 bar
and hysteresis ≤ 30% of set-point value.
Anodized aluminium body, fange in nickel-plated steel NBR sensing element.
Available with 1/8BSPT-1/4"BSPT connection.
Temperature range -5'℃ to +60°C.
Models available with ATEX (Exia) and RlNA product approvals.
