Spec :
-
Intro :

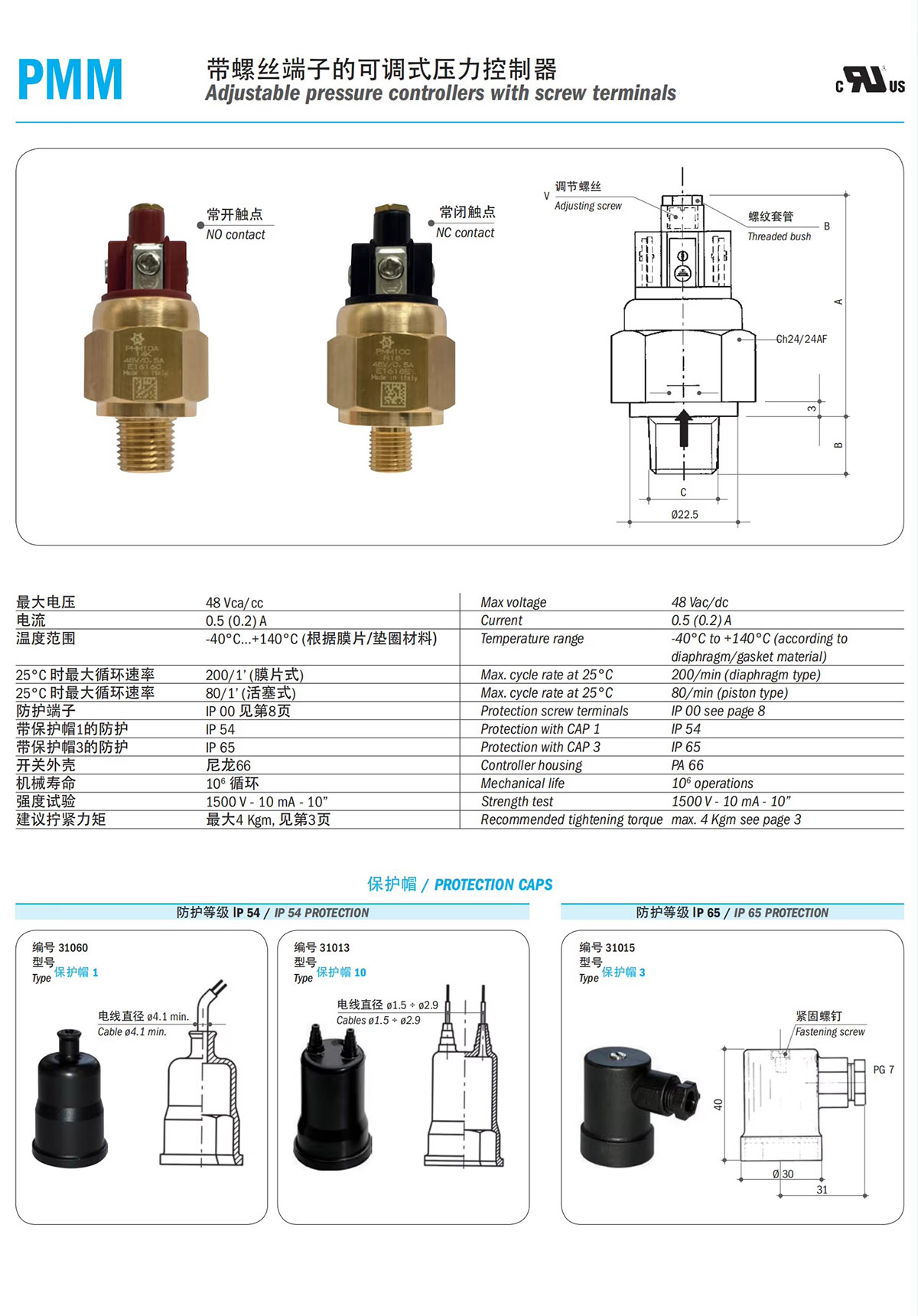

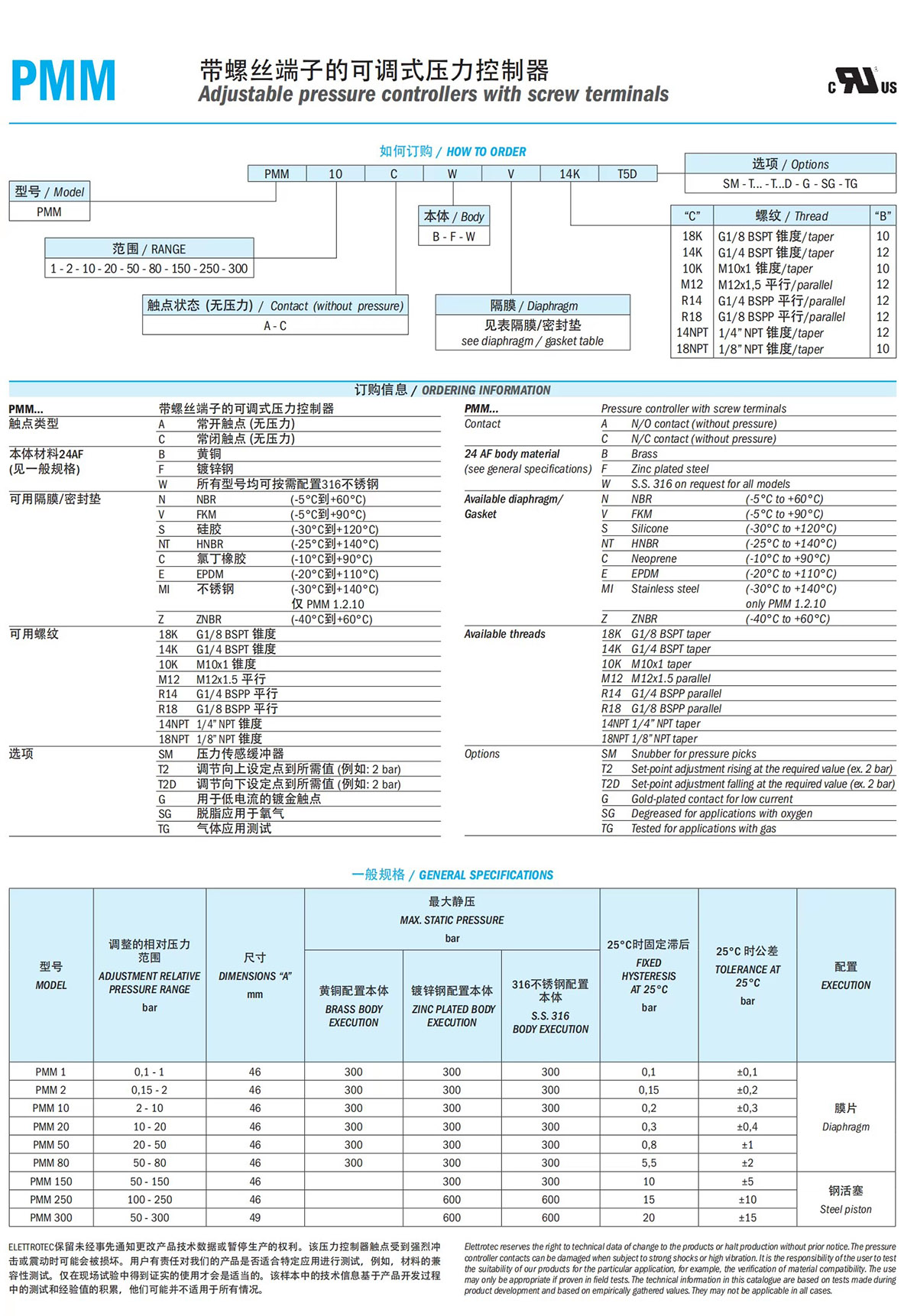

Adjustable membrane and piston pressure switches
with 6,3x0,8push-on terminals, brass, zinc plated or S.S.316 body.
NBR, FKM, EP.DM,HNBR, Neoprene, Silicon membrane.
Pressure range 0,1 - 300 bar

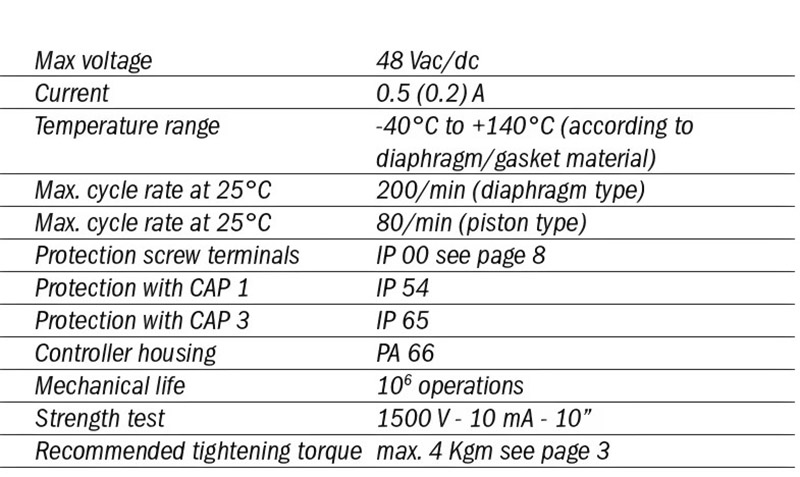

Temperature range -40°C...+140°C.NO/NC contacts,
maximum rated0,5A-48 Vca.
Protection lP65 with CAP3.
