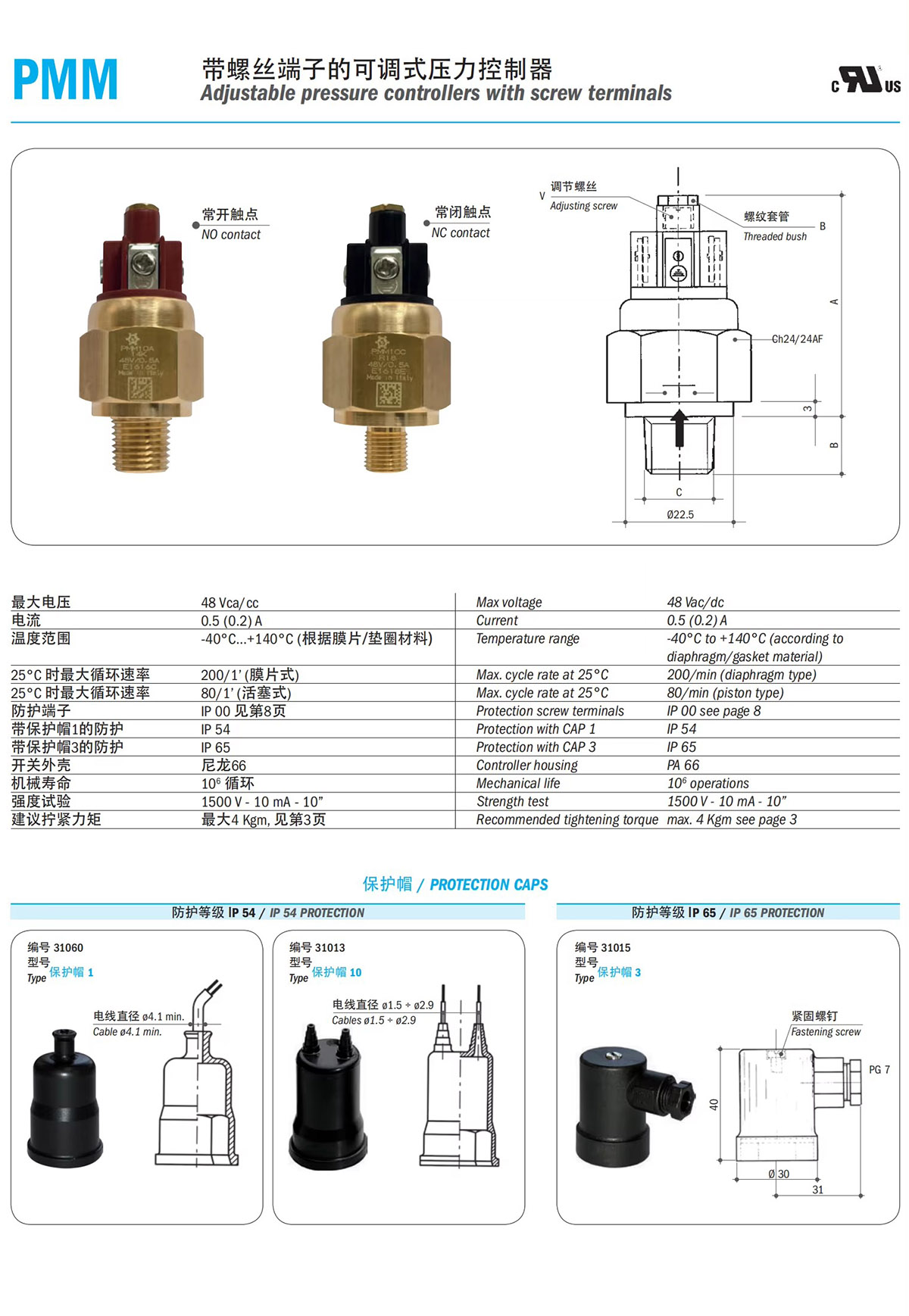

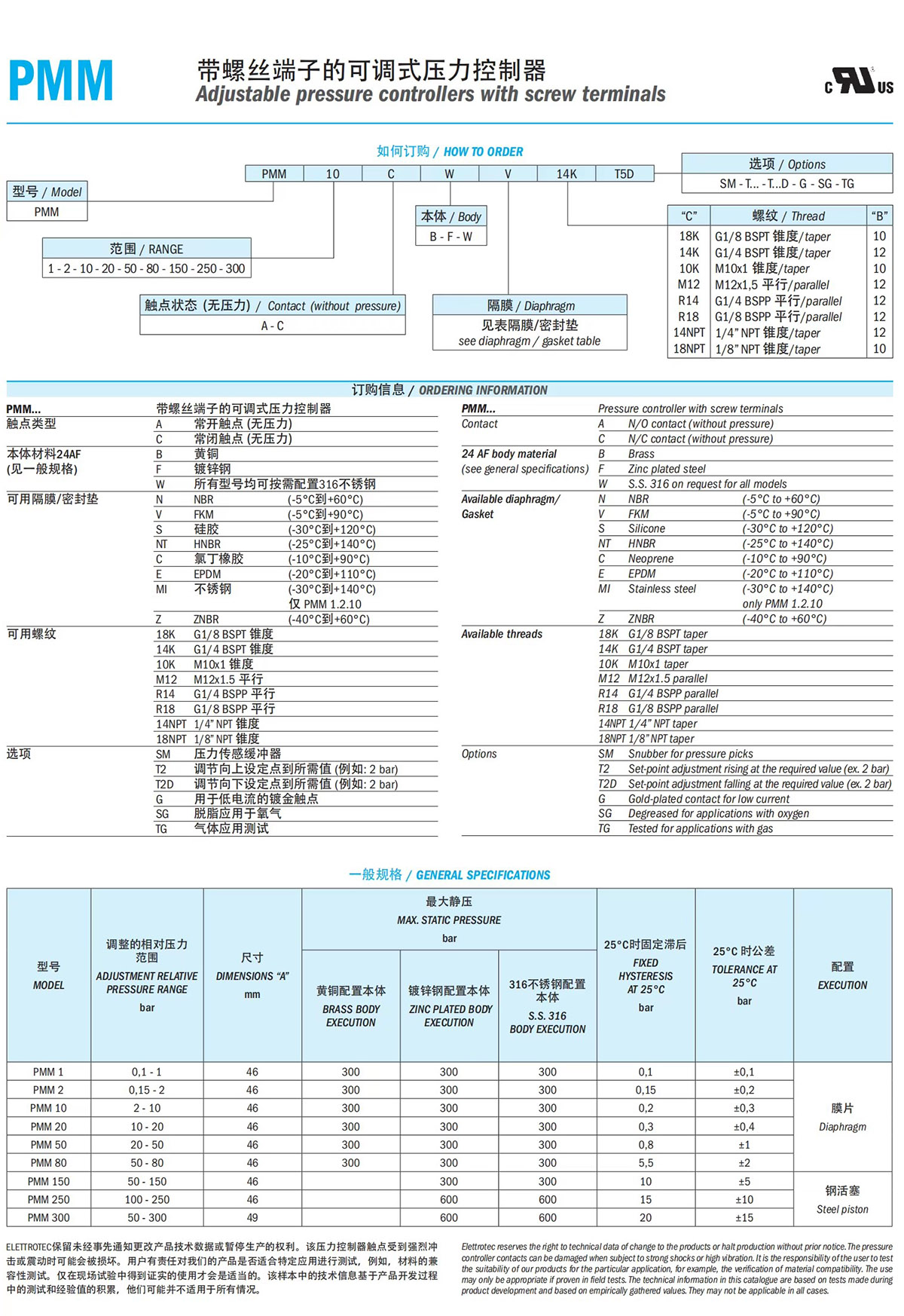

Adjustable membrane and piston pressure switches
with 6,3x0,8push-on terminals, brass, zinc plated or S.S.316 body.
NBR, FKM,EP.DM,HNBR, Neoprene, Silicon membrane.
Pressure range: 0,1 - 300 bar.
Temperature range: -40'C...+140'C.
NO/NC contacts.

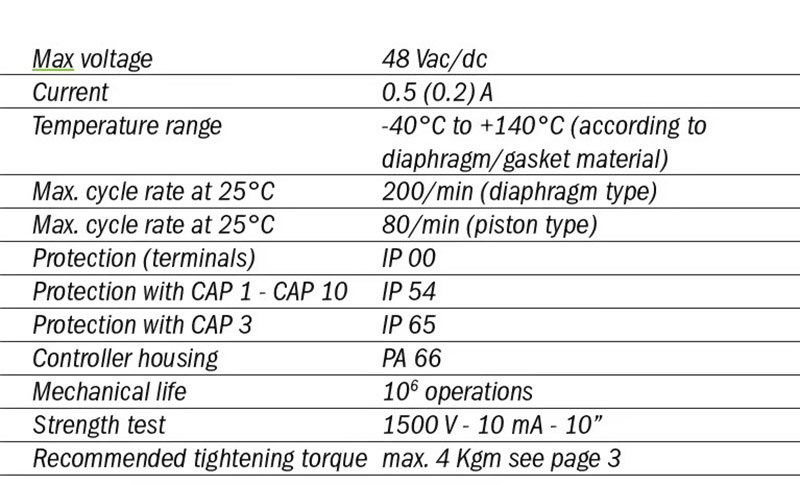

maximum rated0.5A-48 Vca.
Protection IP54 with CAP1 or CAP10.
