FORUM High Torque Stroking (bucking/breakout) and Rotational Torque Oilfield High Performance Professionally API Standard

　　Specification

　　Bore Diameter:400mm

　　Application:2-3/8 inch—14 inch

　　Centre Height:4.6FT

　　Speed Range:It takes double pump air-cooled hydraulic power,manual stepless speed control the rotary speed,rotating head speed is 0.5-5r/min(30KW).

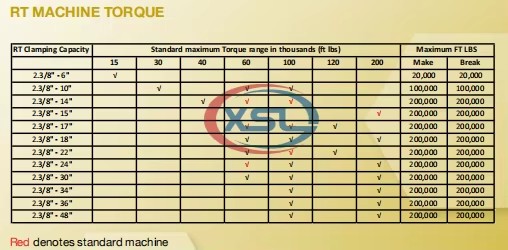

　　Make–up Torque:a)Max.Torque:The Max.make-up torque is150KN.M at 20Mpa pressure;b)Torque display:

　　The computer can display,record and control the torque and turns.Control modePLC+15”tablet PC,operation with buttons.And the machine will stop automatically reaching the setting torque.

　　Torque Accuracy:150N.m

　　Motor Power:30Kw

　　Hydraulic System:Max.pressure 20MPa,flow rate 40-240L/min.
